1.Load capacity:1000t 2.Move speed:0-5km/h with load，0-10km/h without load 3.Max.longitudinal slope:3% 4.Max.cross-fall:3% 5.Total power: 2*415KW 6.Controller:remote
〓 EQUIPMENT PROFILE
This DJ1100 Beam Trolley is matched with DJ1100 Beam Erector to delivery girder, pack the beam erector and pass through tunnel, the minimum tunnel radius can reach 6410mm.
It has the advantages of light weight, small turning radius and low construction cost. At the same time using module design, field assembly is fast, disassembly is convenient. And independent suspension design makes the equipment has good adaptability to the road.
〓 PARAMETERS
| No. | Item | Detail |
| 1 | Capacity | 1000T-1100T |
| 2 | Traveling speed | 0-10.0Km/h (No load) 0-5.0Km/h (Load) |
| 3 | Launching speed | 0-3.6m/min |
| 4 | Allowable slope | ≤3%（L），≤3%（T） |
| 5 | Power | 2*415Kw |
| 6 | Control mode | Remote control |
〓 PROJECT CASES
 |  |

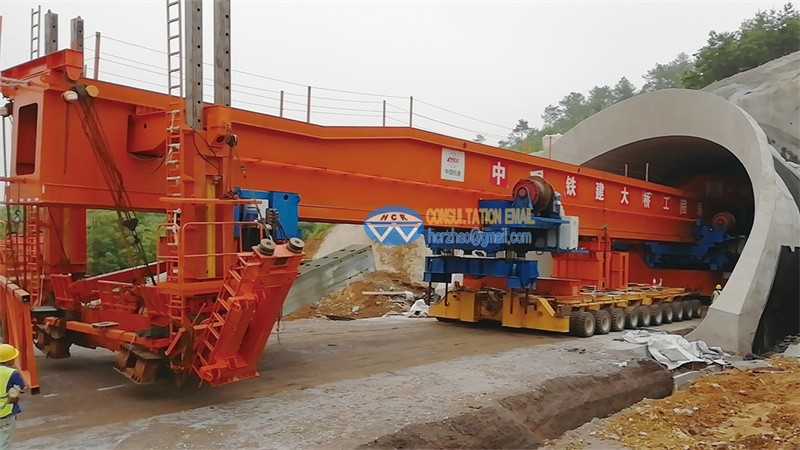

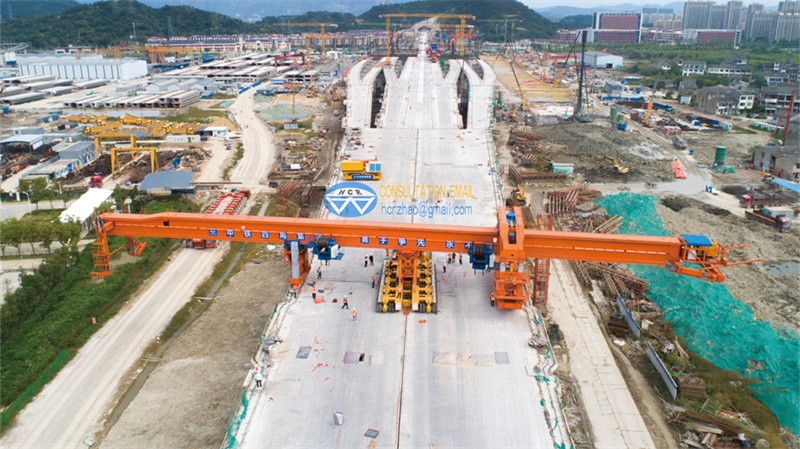

| DELIVERY THE BEAM ERECTOR THROUGH TUNNEL | DELIVERY THE GIRDER ON THE BRIDGE |
 |  |
| DELIVERY THE GIRDER THROUGH THE TUNNEL | ASSIST BEAM ERECTOR TO TURN AROUND |
