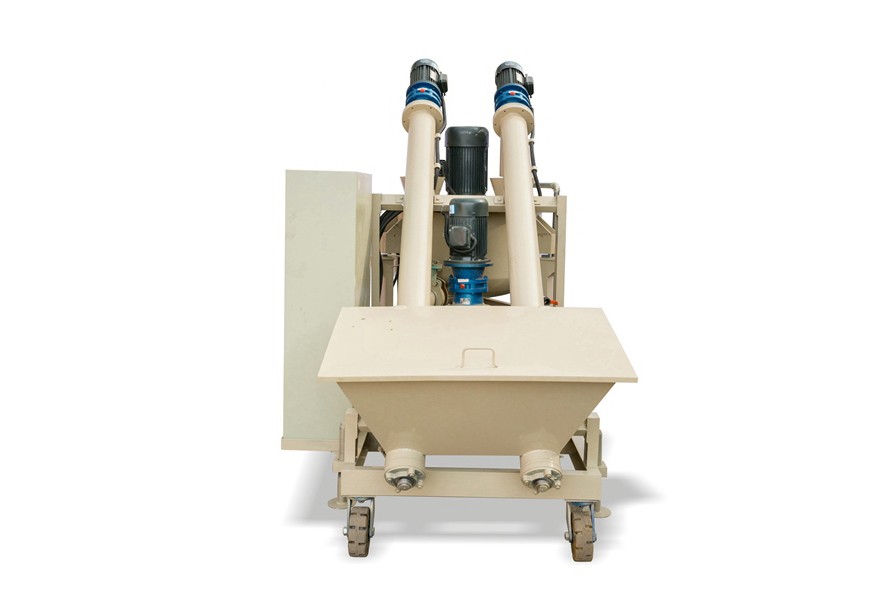

GROUTING PUMP STATION

  〓 PRODUCT FEATURES

Maximum grouting pressure 6MPa, adjustable flow (0.5~5m³/h), equipped with spiral stirring to prevent sedimentation;

Using wear-resistant plunger pump, ultra-fine cement slurry or epoxy resin can be injected;

Intelligent pressure control, automatic pressure maintenance to prevent backflow.

  〓 MAIN PURPOSE

Filling prestressed channels, isolating steel strands from contact with air and moisture, and preventing rust.

  〓 APPLICATION SCENARIOS

Grouting of cable-stayed bridge towers, sealing of prefabricated T-beam channels, and anti-corrosion of underground continuous wall anchor cables.

  〓 INSTALLATION POINTS

The slurry water-cement ratio is strictly prepared according to the specifications, and the channels are moistened before grouting;

Inject from the lowest grouting port, close the top exhaust hole after the thick slurry flows out, and maintain pressure for 3 minutes.

Structural safety Intelligent tensioning eliminates human errors, ensures uniform distribution of prestress, and prevents bridge cracking and deformation	Efficient advancement Multi-equipment collaboration and automated operation shorten the construction period of large-span, multi-channel bridges.	Full-scenario coverage From coastal corrosive environments to extremely cold plateaus, the equipment can output stably, reducing engineering restrictions.	Low maintenance cost Highly durable materials and processes significantly extend the service life of bridges and reduce later maintenance investment

URBAN ELEVATED ROAD Lightweight jacks and low-noise pump stations to adapt  to nighttime construction and narrow space constraints
	CROSS-SEA BRIDGE Corrosion-resistant anchor and bellows combination  to resist high-salt environment
HIGHLAND RAILWAY Low-temperature electric pump stations and antifreeze  hydraulic oil for stable operation in extremely  cold environments
