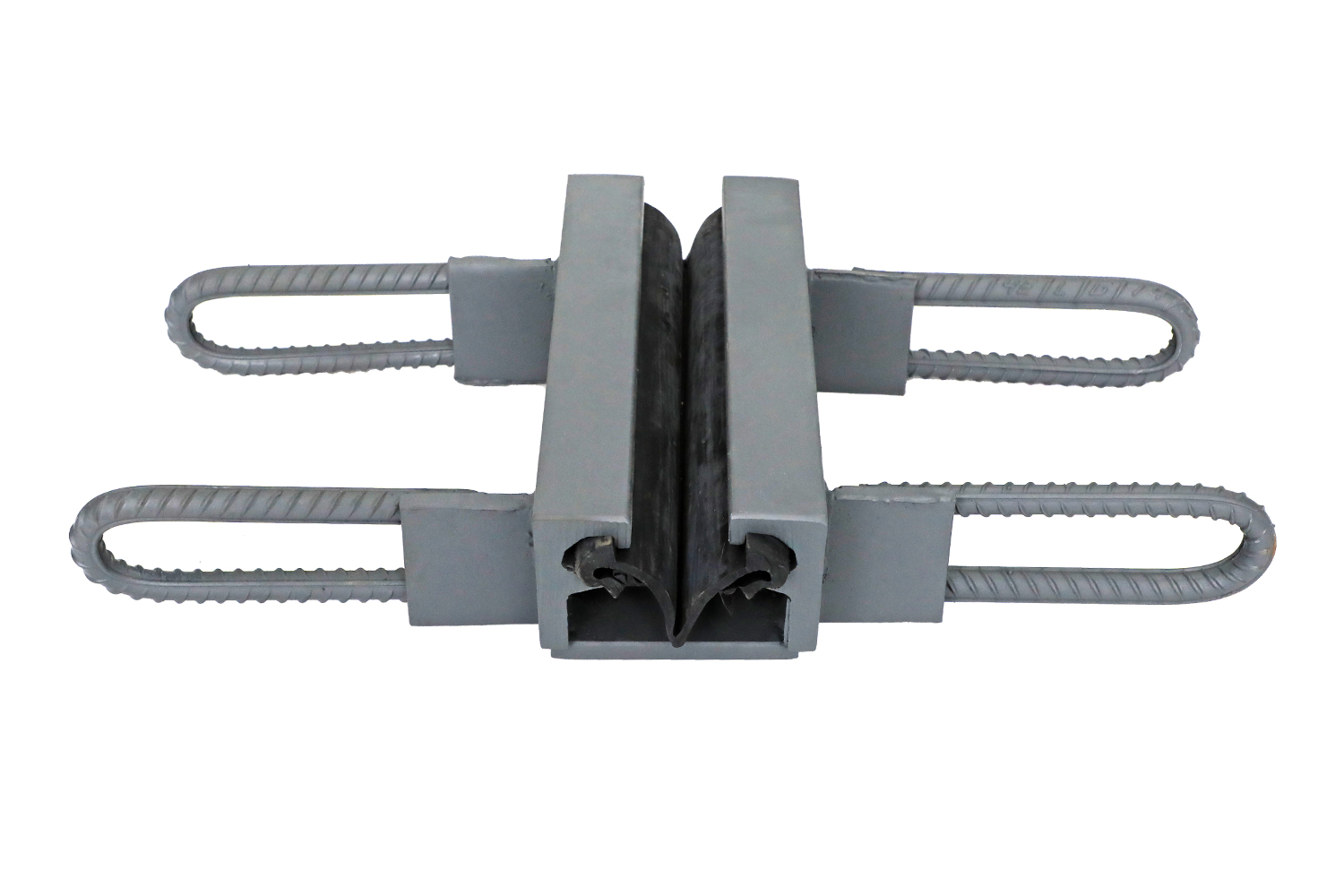

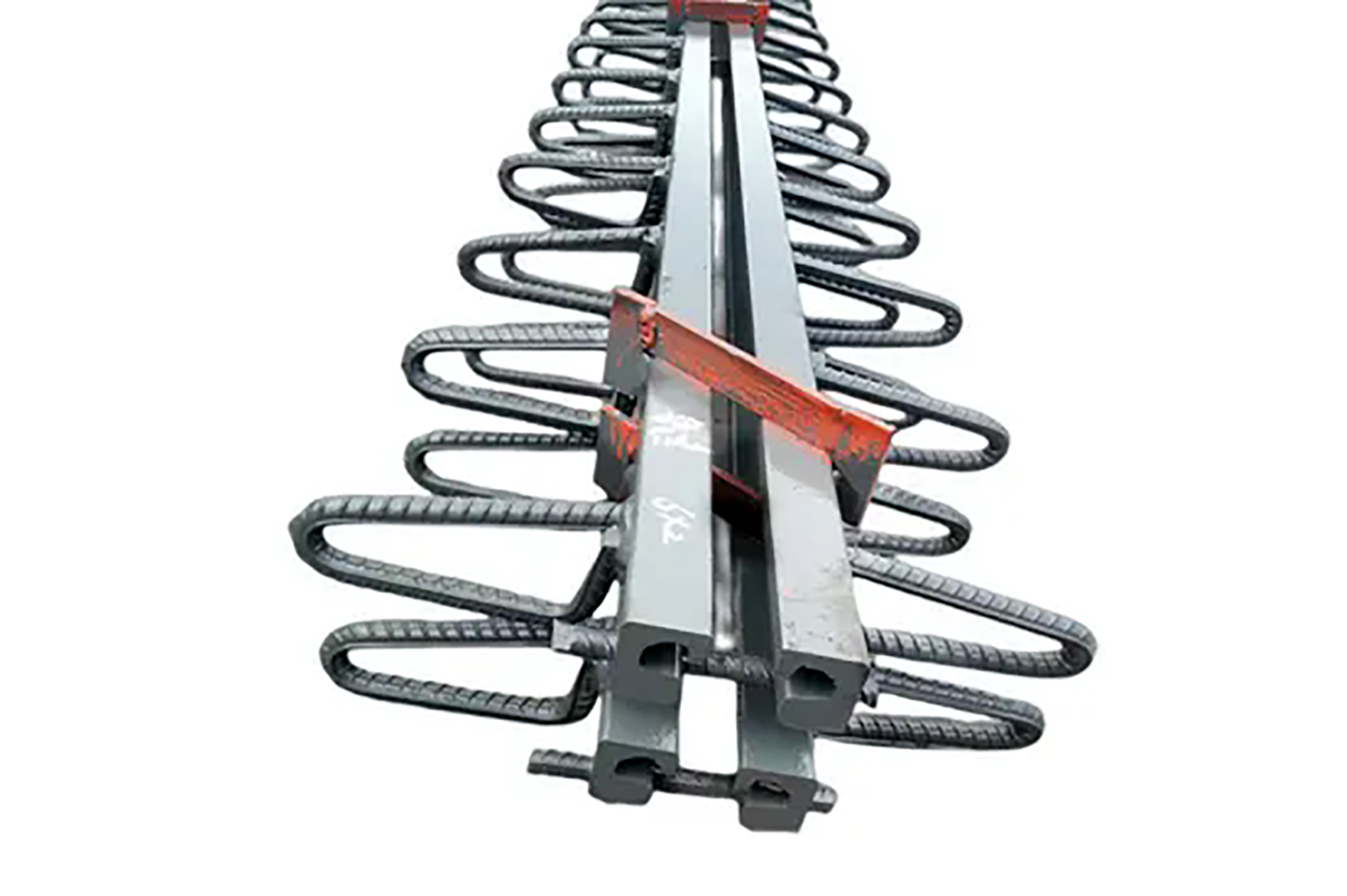

EXPANSION JOINTS

Free extension: supports ±100mm extension, adapts to -30℃~80℃ temperature difference deformation
Strong load-bearing capacity: 100 tons of vehicle rolling without deformation, specially designed for heavy bridges
Waterproof and dustproof: multi-layer rubber seal + stainless steel water guide groove, rainstorm and dust will not enter the seam
Silent noise reduction: elastic rubber silencer strip, vehicle passing noise is reduced by 60%

Product Description:

〓 PRODUCT FEATURES

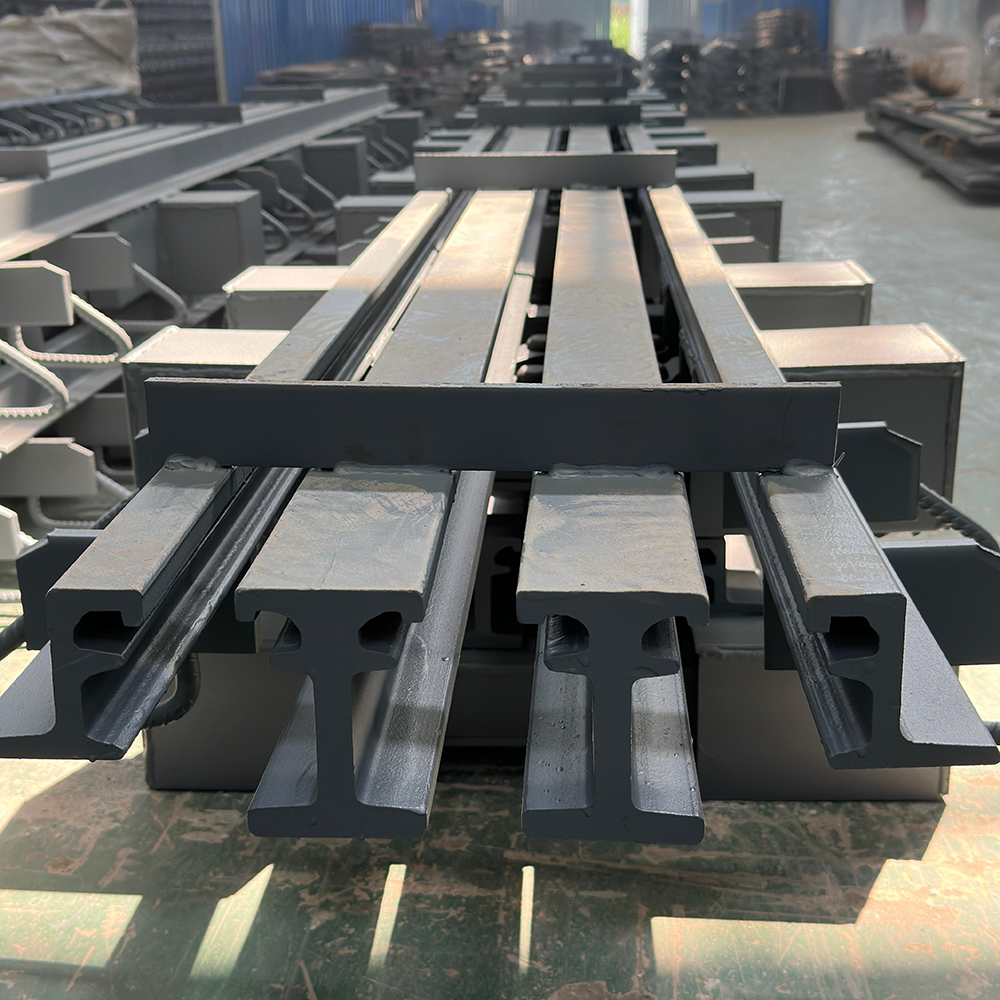

Adaptive telescopic structure

Multi-directional displacement: horizontal telescopic ±100mm, vertical displacement ±15mm, rotation compensation ±2°.

Weather resistance: rubber elements have passed 3 million fatigue tests (-40℃ freezing + 80℃ baking cycle).

High load-bearing design

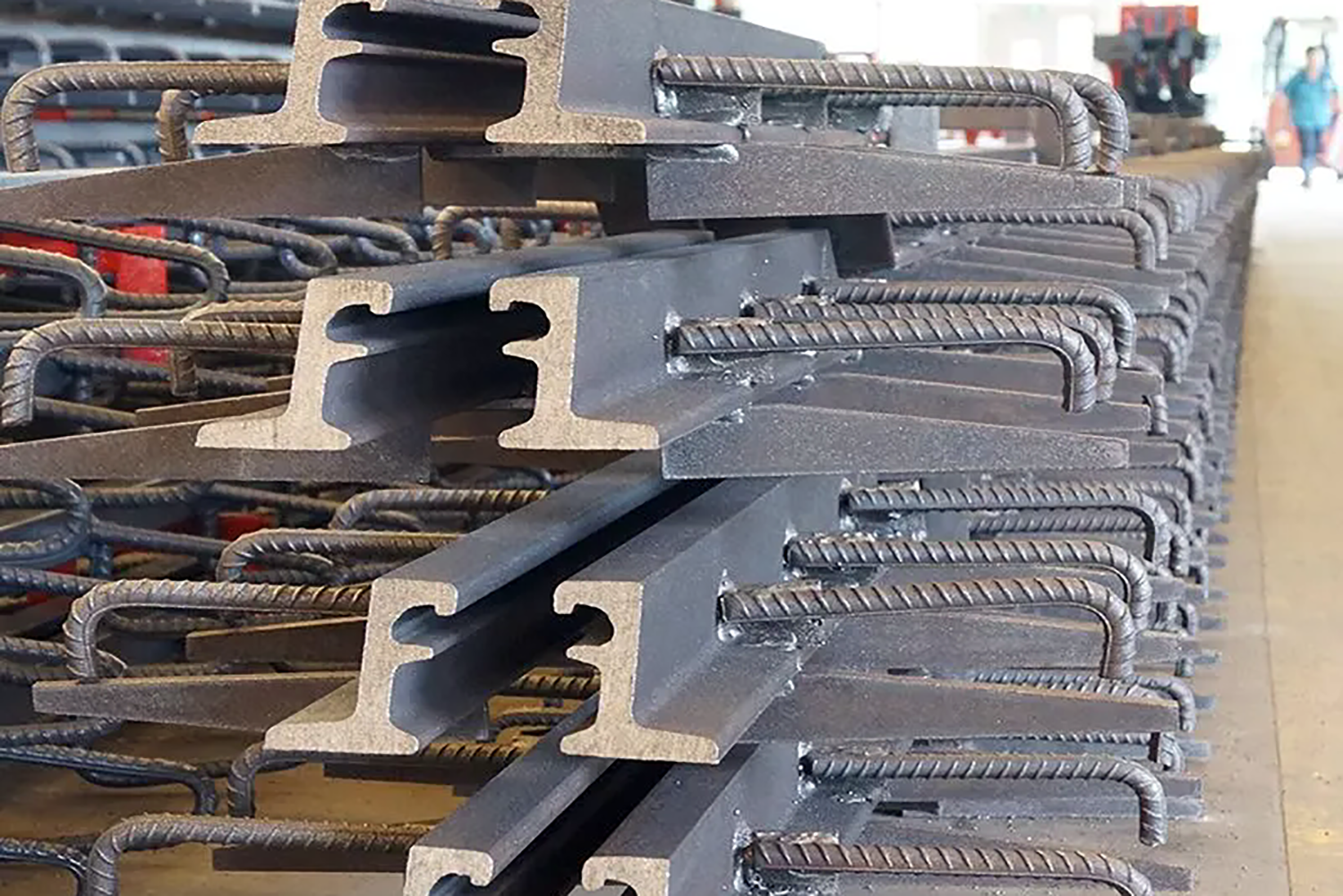

Steel beam skeleton: Q345D high-strength steel, hot-dip galvanized surface (thickness ≥85μm), salt spray test 2000 hours without rust.

Impact resistance: dynamic load 1000kN/m, static load 500kN/m (1.5 times the national standard).

Triple waterproof system

Surface layer: neoprene sealing strip, ozone aging resistance ≥50 years;

Middle layer: stainless steel water guide + drainage pipe, drainage volume ≥10L/(min·m) on rainy days;

Bottom layer: water-expanding waterstop, automatic expansion of 300% to fill the gap when water seeps in.

Noise reduction and shock absorption

Elastic element: natural rubber and polyurethane composite layer, shock absorption efficiency ≥70%;

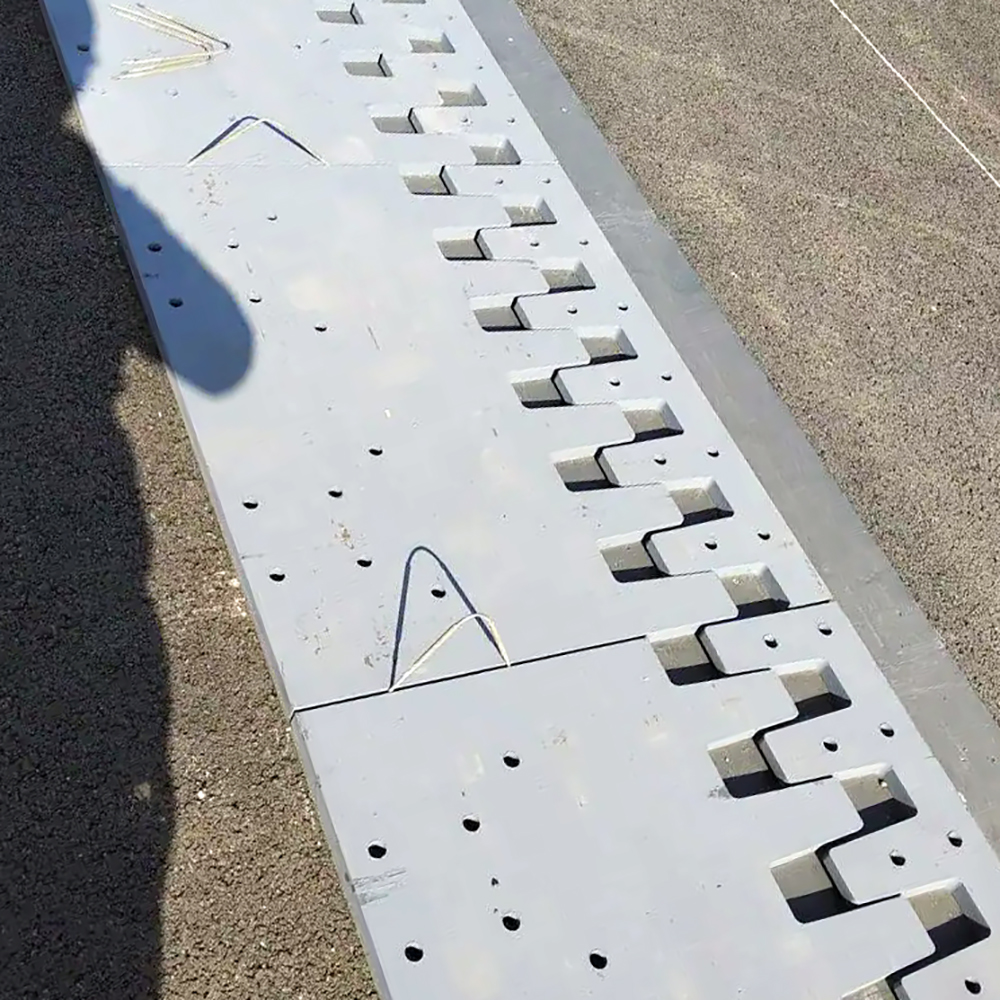

Silencer tooth plate: serrated bite design, vehicle rolling noise ≤65dB.

〓 MAIN USES

Stress release: eliminate structural deformation and damage caused by temperature stress, concrete shrinkage creep, and foundation settlement differences.

Functional zoning: isolate building vibration (such as factory buildings and office buildings), acoustic zoning (such as concert halls and corridors).

Seismic buffer: allow moderate structural displacement during earthquakes to avoid overall collapse (meeting level 8 seismic fortification).

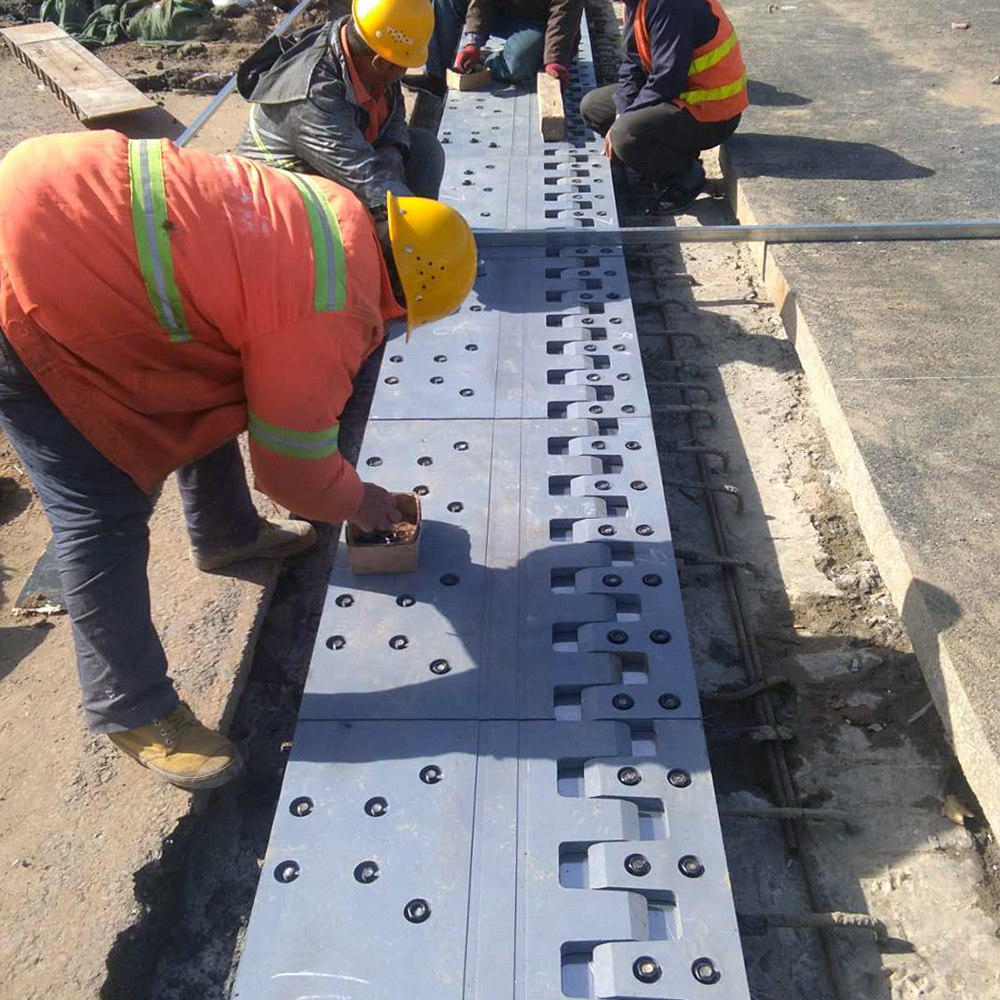

〓 INSTALLATION POINTS
