SEGMENT ERECTOR

1. Capacity:30T-200T
2. Lifting path: 10m, 20m, 30m, 40m
3. Lifting speed: 0-3.0 m/min(No load),0-1.5 m/min(Load)
4. Crane Traveling speed: 0-6.0 m/min(No load), 0-3.0 m/min(Load)
5. SE Launching speed: 5m/min
6. Allowable slope: ≤5%（L），≤2%（T）
7. Crane side shifting speed: 0.5m/min
8. Power: 40-150Kw
9. Working class: A3/M4

Product Description:

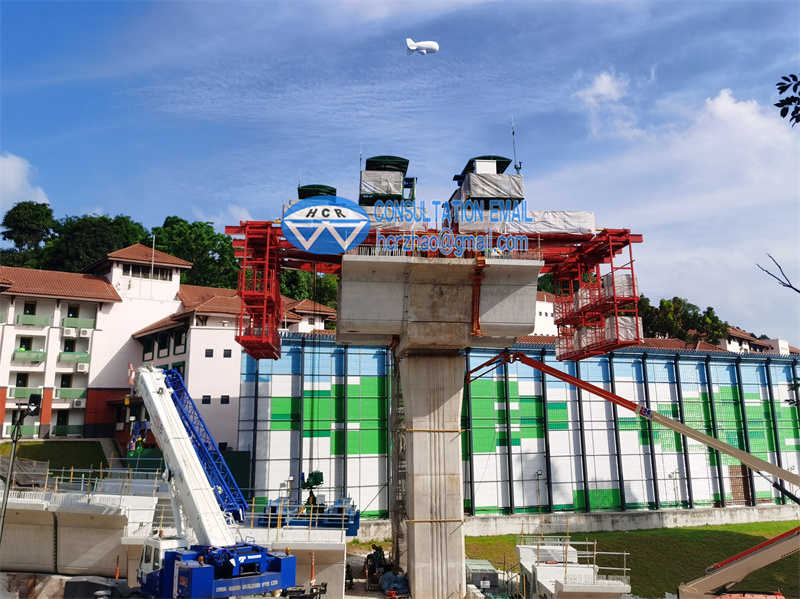

HCR'S SE120 IN MARC BASNIGHT BRIDGE PROJECT, USA


HCR'S SE120 SEGMENT ERECTOR IN BAGO BRIDGE PROJECT，MYANMAR

〓 EQUIPMENT PROFILE

Segment erctor, also known as segment lifter, in the context of bridge construction, is a specialized piece of equipment used to lift and place precast concrete segments in bridge construction projects.

Segment Erector (SE) is being used to install Precast Segment for Balance cantilever bridge when the used of mobile crane is not feasible. SE provides these advantages:

1. Setting up only one time for each pier. This is a very crucial feature. In urban area the Balance Cantilever Bridge normally is a part of the larger project; and it serves as a solution for crossing the existing highways where longer spans are needed. Installation activity

above the existing highway might not be smooth. In many cases very short time frame will be given for each day. Or in some cases only certain day in a week would be granted for work. SE is always in the ready mode therefore will fully utilize the given few hours of construction time frame

2. Construction across highway is unpredictable. In many cases the construction duration will be longer than expected, SE cost is not affected by the construction duration if the contractor owns it

3. SE utilizes variety of segment delivery solutions for difficult terrain

4. SE has good re-sell value and is easy to store.

〓 PARAMETERS

No.	Item	Detail
1	Capacity	30T-200T
2	Lifting path	10m, 20m, 30m, 40m
3	Lifting speed	0-3.0 m/min(No load) 0-1.5 m/min(Load)
4	Crane Traveling speed	0-6.0 m/min(No load) 0-3.0 m/min(Load)
5	SE Launching speed	5m/min
6	Allowable slope	≤5%（L），≤2%（T）
7	Crane side shifting speed	0.5m/min
8	Power	40-150Kw
9	Working class	A3/M4

〓 PROJECT CASES


SEGMENT ERECTOR SE90 IN ZHENGZHOU PROJECT, CHINA	SE95 IN MRT V201 PROJECT，MALAYSIA

SE100 IN BARAPULLA ELEVATED HIGHWAY, INDIA	SE65 IN JURONG LINE ITTC PROJECT, SINGAPORE

SE90 IN NANCHANG HONGDU ROAD, CHINA	SE100 IN BARAPULLA ELEVATED HIGHWAY, INDIA

SE120 IN MARC BASNIGHT BRIDGE PROJECT, USA	SE45 IN JURONG LINE J102 PROJECT, SINGAPORE
